Vertical mixers for loose materials

WELCOME TO THE WORLD OF VERTICAL MIXERS FOR LOOSE MATERIALS FROM PHARMIX, S.R.O.

We invite you to the world of vertical mixers for loose materials. We have been bringing these machines to the market for several decades, making us one of their very first manufacturers. Our company is proud of a successful and significant segment of our production programme – vertical mixers, also known as "NAUTAMIX" planetary mixers of the HV 50–HV 5000 series.

OUR MISSION: PERFECTLY BLENDED MIXTURES FOR EVERY NEED

Our vertical mixers are more than just machines – they are a key element in achieving great results in your production. We create mixing technologies that are custom-made and have a wide range of possible applications. From the preparation of food and beverages, through the production of pharmaceutical products, to the homogenization of chemicals and paints. We are a partner for the production of instant drinks, soups, coffee mixes, pharmaceutical medicaments, vitamins, feed mixes and many other products. Thanks to proven working accuracy and an excellent degree of homogeneity (1:100000), we offer solutions for quality and consistent results.

VARIETY OF DESIGNS: CHOOSE THE RIGHT ONE FOR YOU

We offer different designs to meet your specific requirements:

STANDARD:

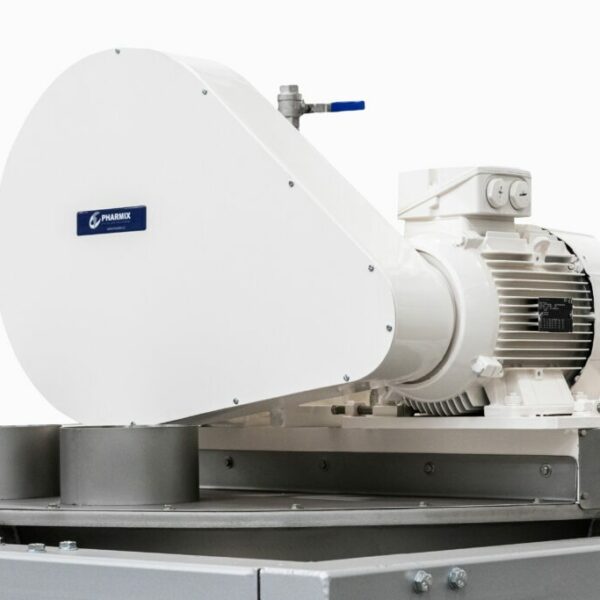

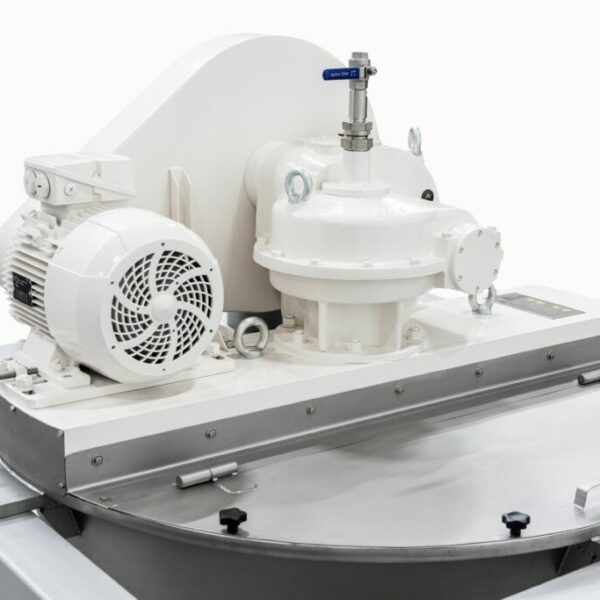

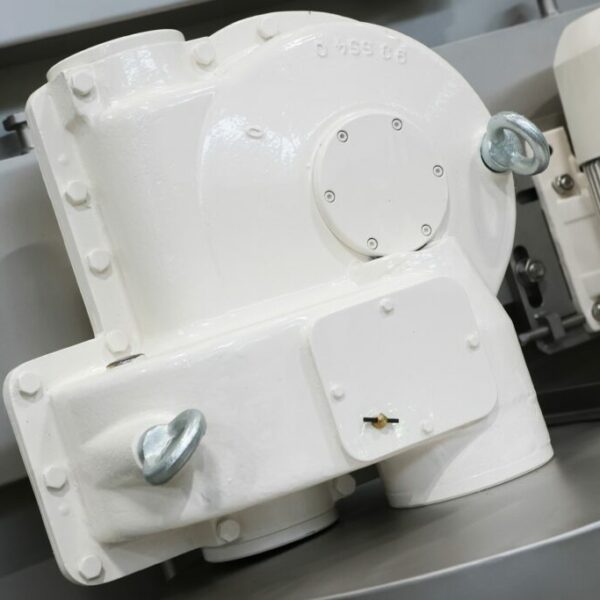

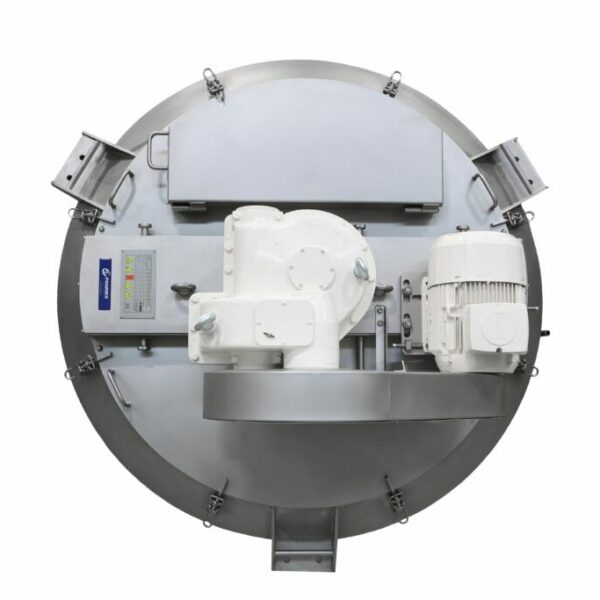

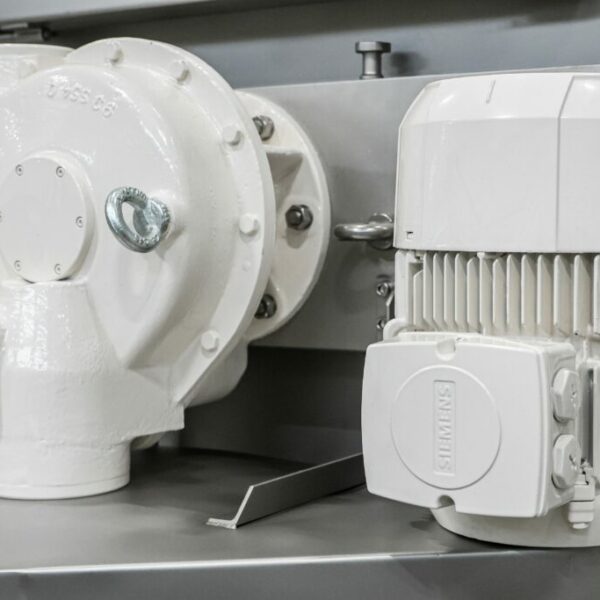

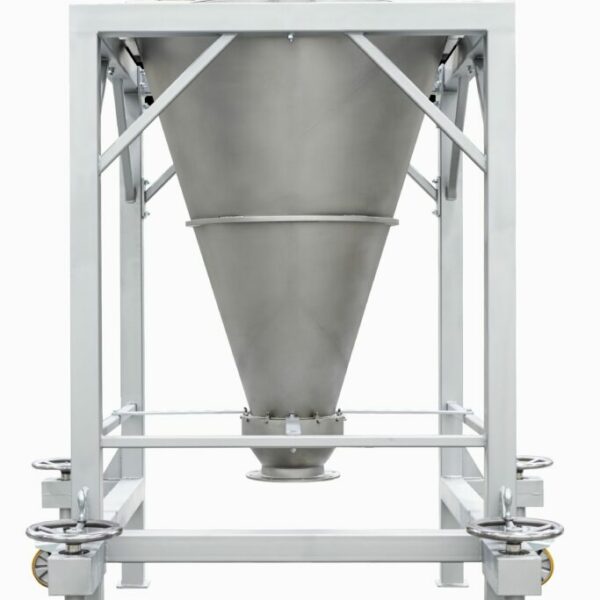

The vessel of the vertical mixer, screw agitator and top covers are made of AISI 304 (1.4301) stainless steel. The remaining components such as the arm, drive, beam and gearbox are made of carbon steel combined with grey cast iron.
Parts in contact with the product are polished, including welds. The outer surface of the vessel, gearbox, motor and beam are painted.

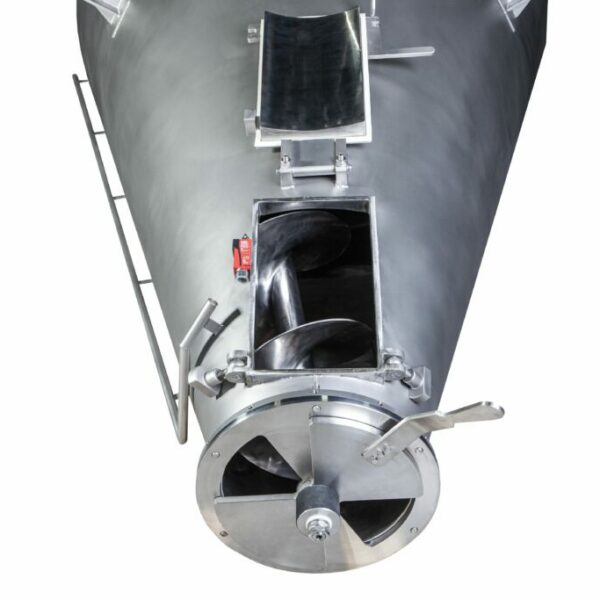

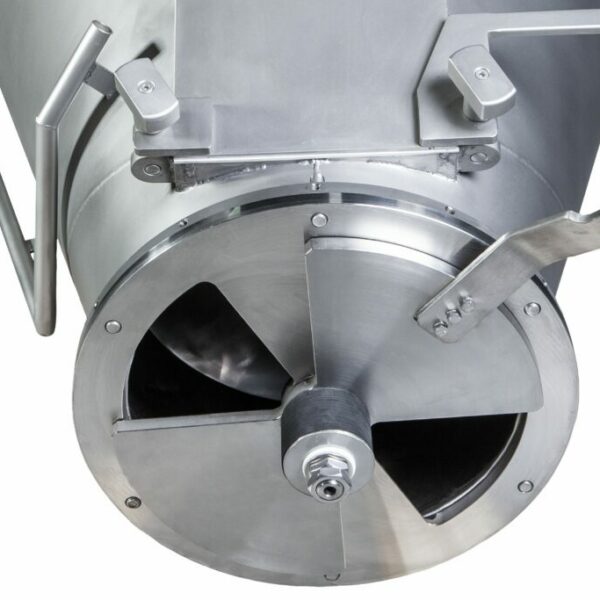

To empty the mixed product, the homogenizer is equipped with a manual "butterfly" outlet valve.

PREMIUM:

Thanks to the premium design of vertical mixers, it is possible to adapt the machine more to different levels of needs and expectations.

All-stainless design of the vertical mixer. The parts in contact with the product are made of AISI 316L (1.4404) stainless steel.
The surface is ground or polished. The screw agitator is coated with hard metal or ceramic composite for mixing highly abrasive mixtures.
The vessel can be produced in double-shell version with a pressure duplicator for heating/cooling the mixed medium.

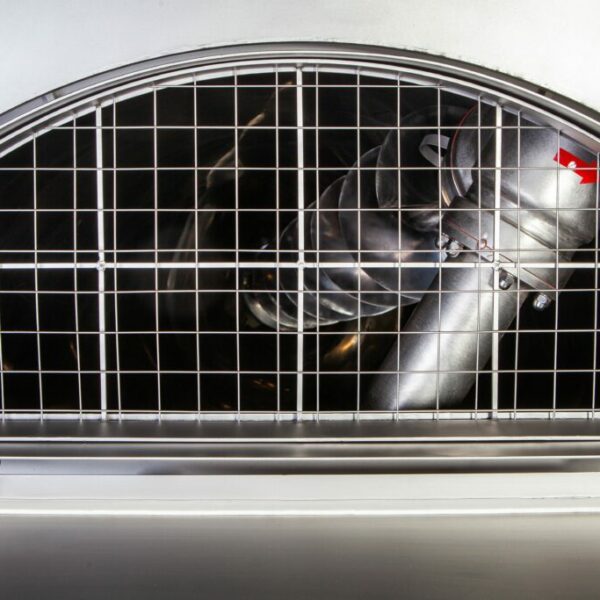

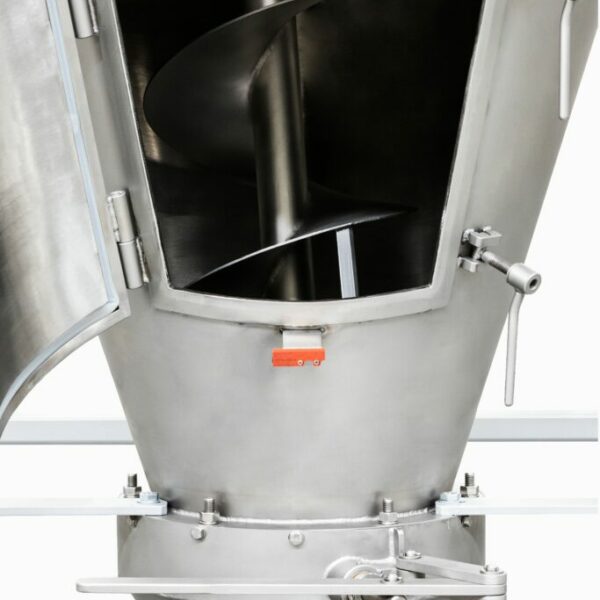

The container is equipped with an inspection hole, tensometric weighing, a spraying device or an outlet with a pneumatically controlled knife-sliding valve.

LOOSE AGITATOR:

For those who require special adjustments, we offer vertical mixers with loose design. These models are ideal for applications where it is undesirable to have the screw agitator supported by the base bearing, for example in heavy industry or pharmacy.

ATEX:

Our vertical mixers are also certified for environments with explosive atmospheres. We cooperate with professional institutes to offer you vertical mixers that meet strict production safety standards. The internal environment of the homogenizer is classified as zone 21 and the external environment as zone 22. It is also possible to offer vertical mixers with a different environmental classification. Our sales department will provide you with detailed information.

PROVEN QUALITY, SAFETY AND RELIABILITY

Quality and safety is our goal, which is why increased emphasis is placed on it during construction. All our models undergo verification and certification, which ensures reliability and safety of operation. They have a proven working accuracy of up to 1:100,000 for all types. Thanks to easy and safe operation and undemanding maintenance, you get economical operation with low electricity consumption costs.

PARTNERSHIP APPROACH

Our vertical mixers for loose materials are a proven partner for your production process. We are constantly innovating our technology and adapting them to your specific needs. With PHARMIX, s.r.o. you will not only get quality homogenization equipment, but also a partner available to you with professional advice.

CONTACT US FOR MORE INFORMATION

If you want to improve the quality and performance of your production, do not hesitate to contact us. We are here to provide you with the best homogenization solution for your needs. Together we will achieve the perfect homogeneity of your products.

More technical information can be found here.
