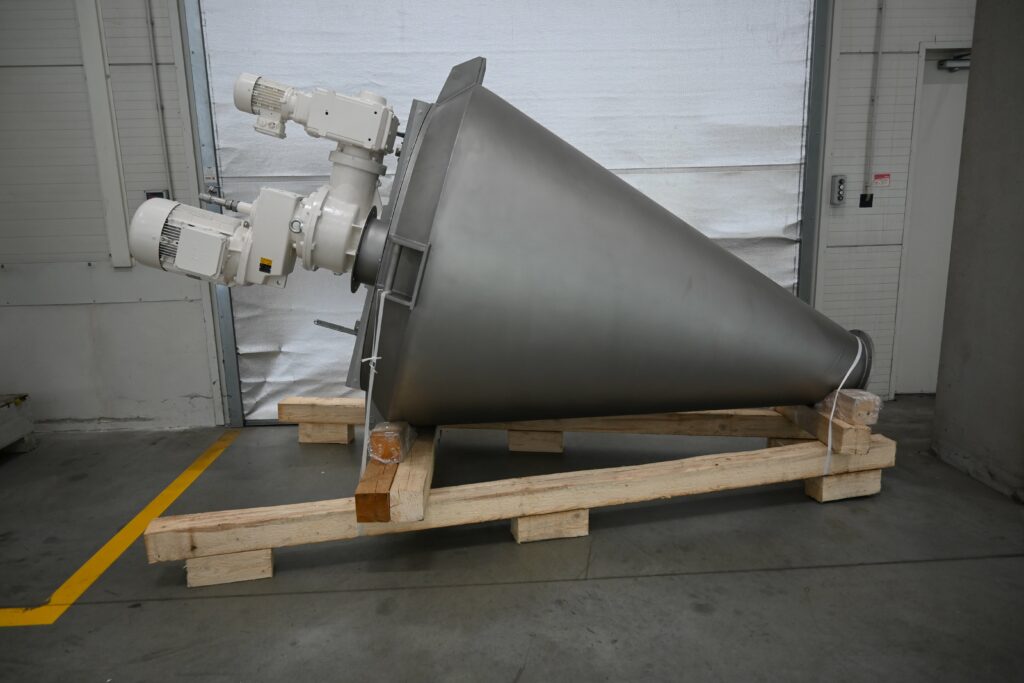

VERTICAL MIXER HV1000 FOR MIXING OF TUNGSTEN OXIDES
In July, we successfully completed the production of a vertical mixer with a working volume of 1000 litres, which meets the specific needs of our customer. Our vertical mixer has been carefully designed to effectively mix tungsten oxides with a maximum bulk density of 3 g/cm3. With powerful technical features and precise control of the mixing process, we achieved the required degree of homogeneity. We have not only focused on performance, but also on safety. We have created a working environment that is completely safe and free from the risk of explosion. The reliability of our vertical mixer is the basis for a trouble-free production process.
For more information about our reference projects and our capabilities, please contact us. We are here to help you achieve success in your manufacturing business.
SPECIFICATION:
- maximum pressure inside the vertical mixer 0.45 bar

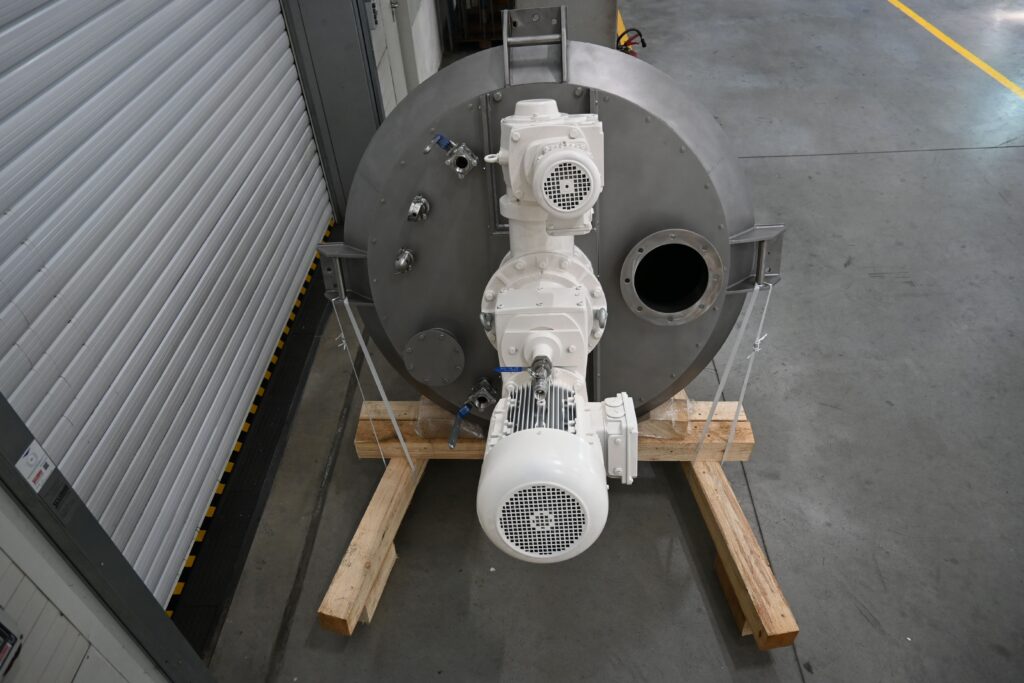

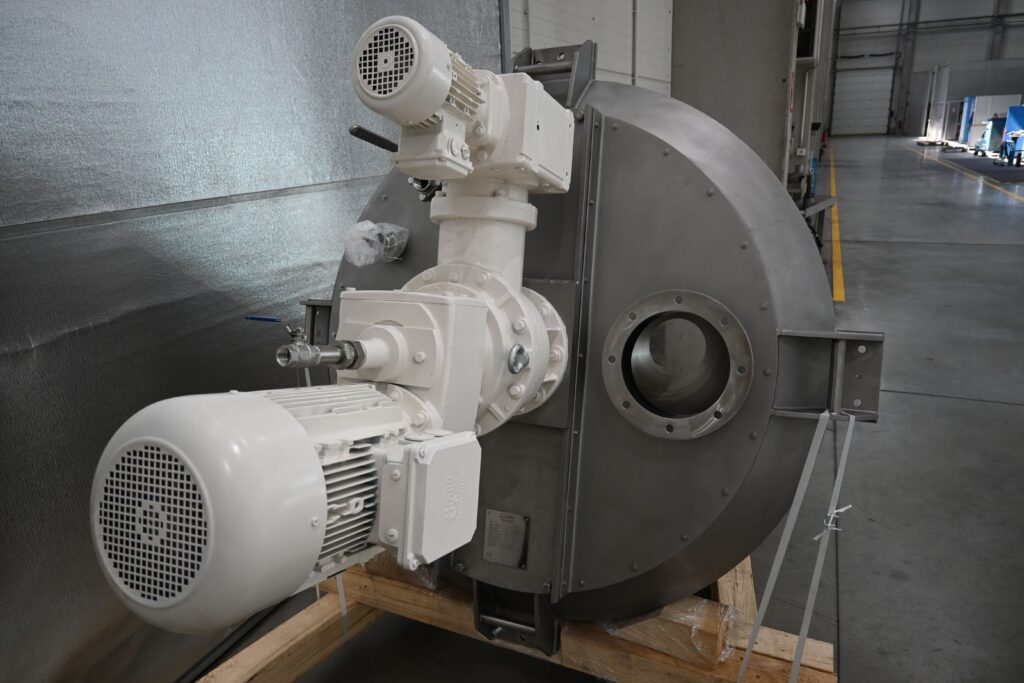

- reinforced PHARMIX gearbox, 2 NORD gearboxes 9 kW and 0.75 kW
- gearbox with preparation for liquid injection, input manual valve ¾ “, output injection nozzle
- fluid used – water and chlorides
- vessel, screw agitator, cover, drive beam, drive arm AISI 304
- gearboxes painted in basic colour, shade RAL 9001

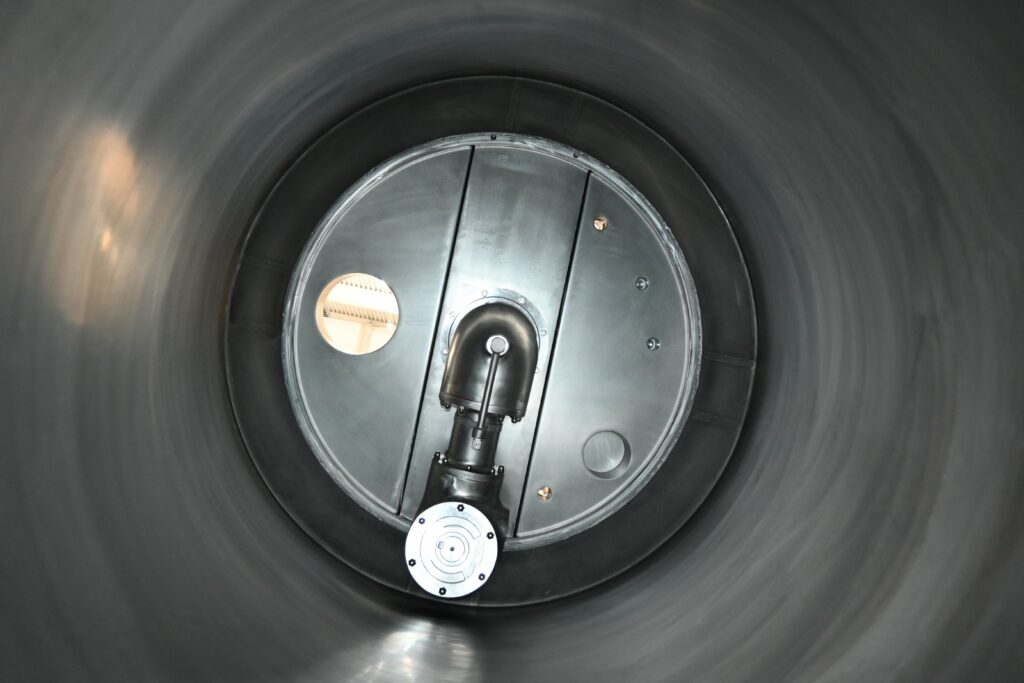

- inner surface of the vessel Ra 0.8 – outer surface is glass blasted
- dustproof design of the vertical mixer

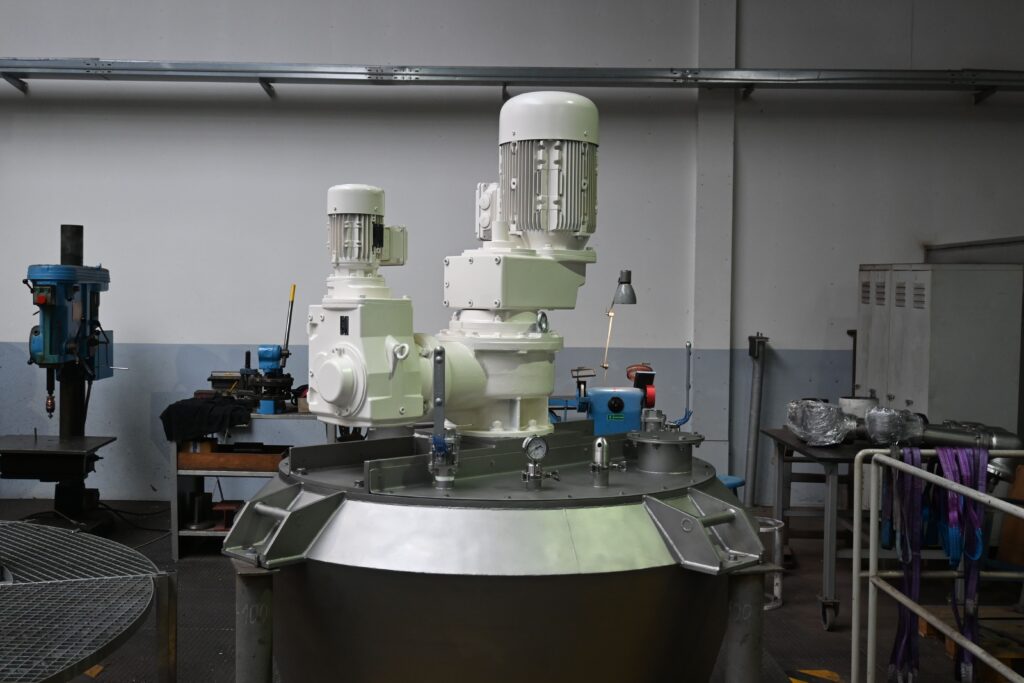

- nozzles on the cover of the vertical mixer
- product input – valve BIANCA DN 150 with pneumatic drive

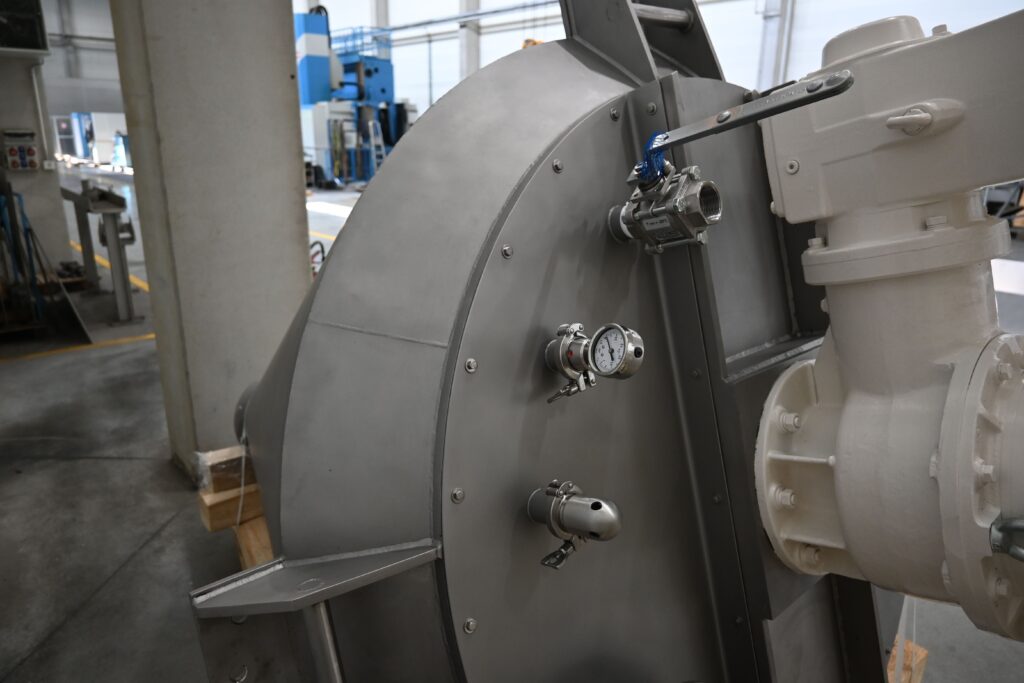

- nitrogen inlet ball valve DN ½ ” manual
- nitrogen outlet ball valve DN 1 ¼ “ manual

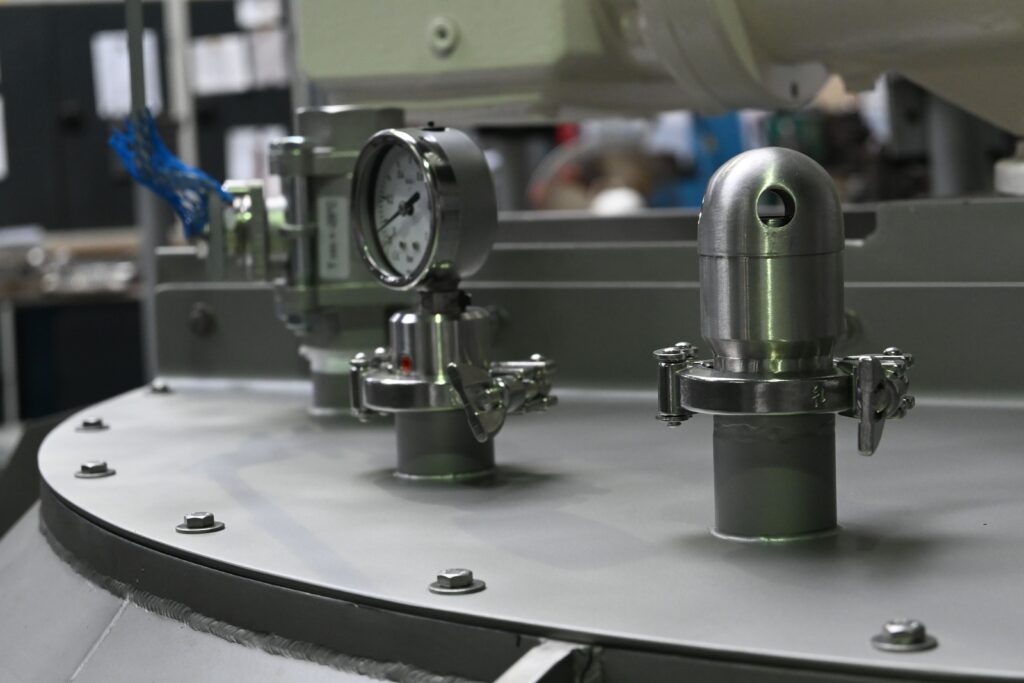

- stainless steel pressure gauge diameter 100 mm
- blowing, occasional inertization, when mixing hazardous materials
- reserve nozzle DN 150, blinded
- outlet knife sliding valve L 65 DN 300, stainless steel, pneumatic drive, position sensors, valve 5/3, coil 230V AC
- valve sealing – metal-metal, opening with an intermediate position or with continuous regulation
- placed on four feet
